MULTIVIEWER

The TAG platform provides a complete multiviewing application tool combined with probing and monitoring.

Multiviewer

The TAG Visualization Solution

The TAG Visualization Solution

The TAG multiviewing tool is fully integrated with probing and monitoring capabilities. It can receive, monitor and visualize all broadcast media formats like the 2110/2022-6 Uncompressed; compressed MPEG-TS; and OTT streams all the way down to the encoded video content and its quality. The solution provides the operator with a simple and strong tool for error detection, alerting and multiviewing.

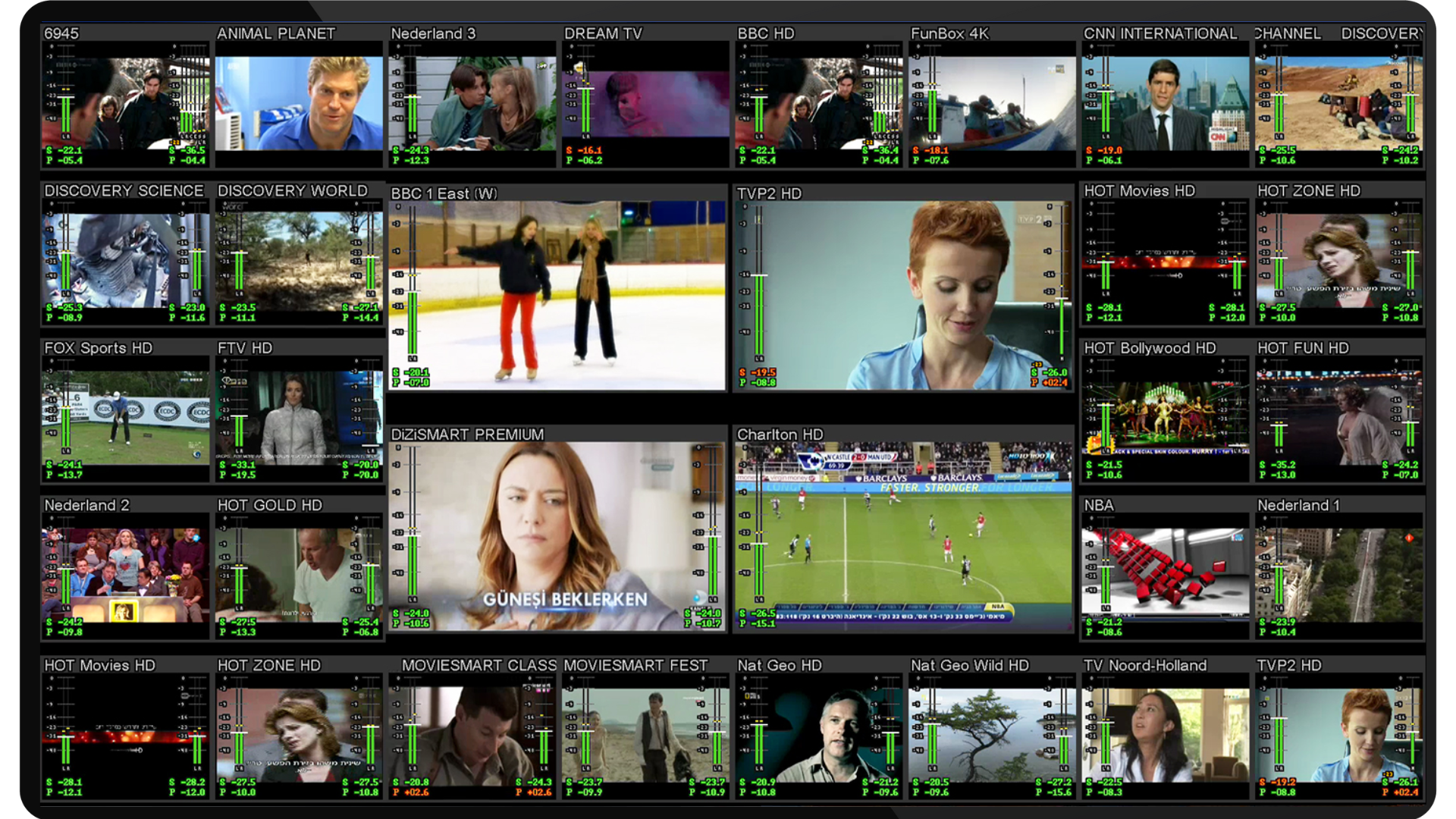

The created output mosaic/head is an HD or UHD video stream, encoded and transmitted as 2110-21 and standard H.264/H.265 SPTS also in Zixi protocol; along with an HLS parallel output – enabling remote multiviewing, mobile devices access and a flexible installation topology.

Multiviewer Highlights

Multiviewer Highlights

uncompressed ip video

All Uncompressed Formats

ST-2110-10/20/21/30/31/40, ST-2022-6 SDI over IP

ip video user

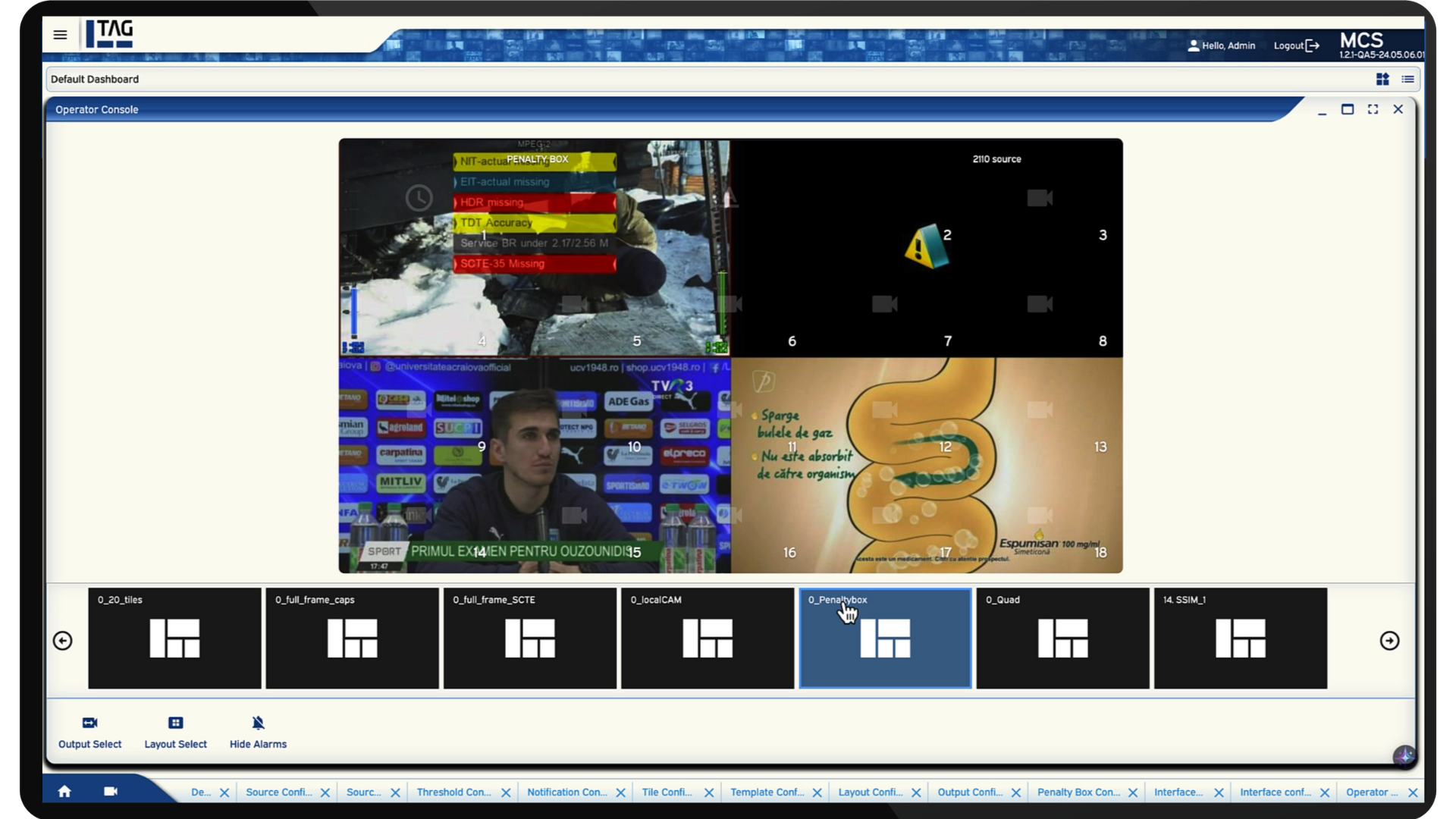

User Defined Layouts

Personalized control panels and layouts with TAG's rich API

layout monitor

Flexible Layout/Tile Editor

Create custom tiles in one of multiple mosaic layouts (via API)

swap monitoring

Display Veriaty

Round-Robin and Paneity Box (CED) layout displays

grid layout

1-100 Tiles per Layout

Pending your output resolution, save real-estate by adding tiles

low latency

Ultra Low Latency

Low latency SMPTE 2110/2022-6 in 100% software

density ott monitoring

High Input/Output Density

High number of inputs within a single server for maximum resource usage

uhd monitor

HD & UHD Output

Encoded and delivered as uncompressed ST 2110-21/30

puzzle piece video

Mix & Match

Uncompressed and compressed sources on the same server and mosaic output

tally layput

Full Tally & UMD Integration

Tally & dual UMD via TSL protocol or TAG's elaborated API- Your call

compressed live production

JPEG-XS

Support for JPEG-XS Inputs for cloud enabling and large scale monitoring

multiviewer redundancy

Redundancy

ST 2022-7 redundant Inputs/outputs from two separate network Cards

+
Events and Thresholds Monitored
Channels Monitored and Visualized Worldwide
%
IP, Software, COTS/ Cloud

The Multiviewer Specifications

The Multiviewer Specifications

ALL APPLICATIONS AND FORMATS IN ONE OUTPUT

FAQs

One of the most popular questions we get. Of course, the answer will depend on your application. But good news- we have created a special tool to help you get an estimate. Check it out: http://systemconfigurator.tagvs.com/

Absolutely! Did you know all our existing clients tried the system before choosing TAG? (Okay, all but one). Apply for your free 90 day trial: https://www.tagvs.com/tag-trial/

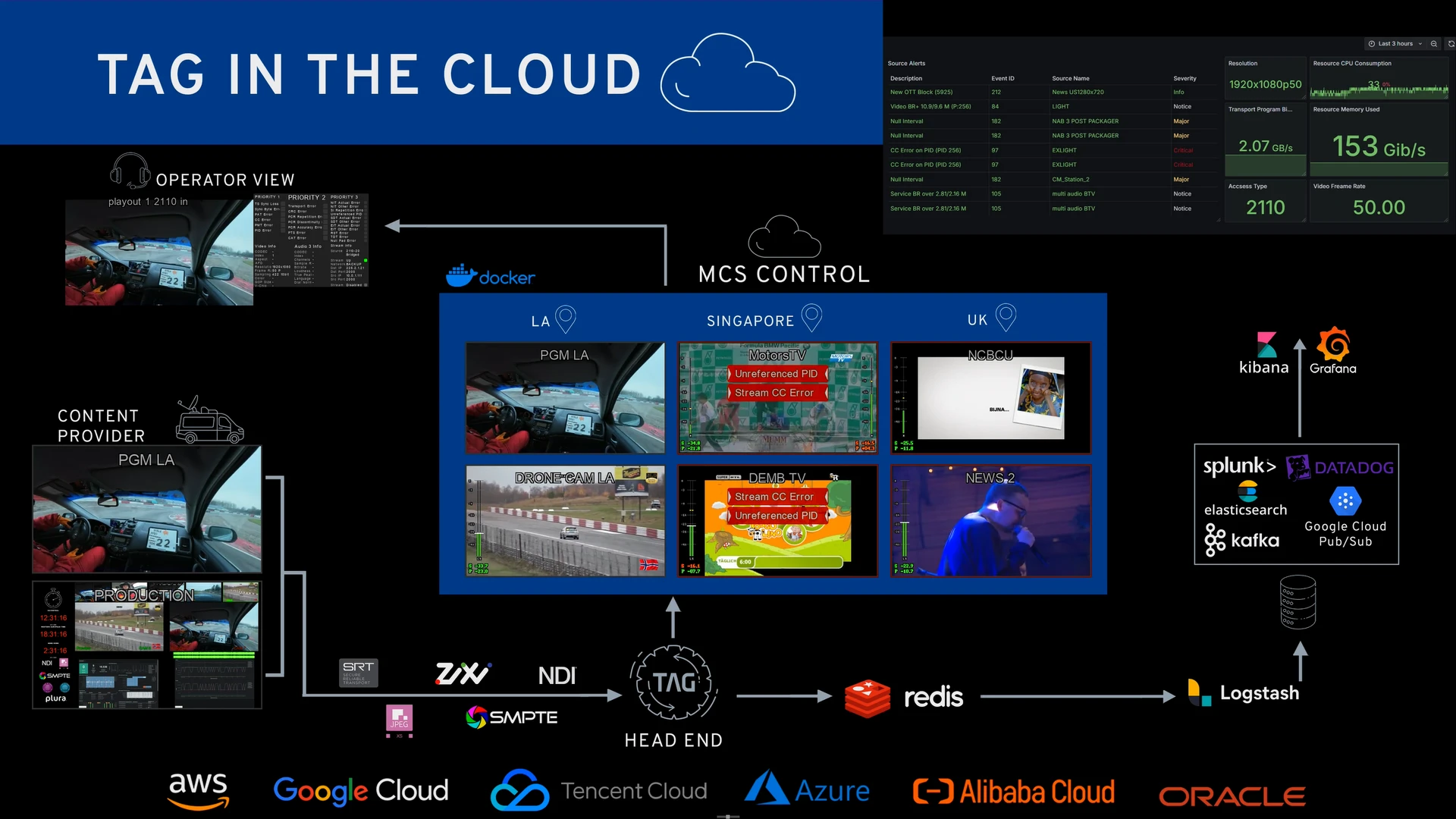

Yes! The TAG platform can run on cloud instances. Learn more here: https://www.tagvs.com/tag-on-the-cloud/

We do!

The two main challenges of cloud live production implementations for work-from-home applications are getting the uncompressed sources to the cloud and delivering the Mosaic Output to the home.

The TAG platform JPEG-XS which can be used to deliver high-quality production content to the cloud where bandwidth limitations apply and can also provide the mosaic output as Zixi and/or HLS streams to be delivered to the home over the public Internet.

The TAG platform has an elaborated JSON API which can be used by custom user panels configured to control the system functionalities.

Learn about all the formats and standards TAG supports here

Yes! The TAG open, flexible and rich APIs allow integrations with virtually any system

Yes! The TAG open, flexible and rich APIs allow integrations with virtually any system
