PROBING/ MONITORING
The TAG platform provides a complete probing and monitoring application tool for all transmission layers
Get valuable data across the entire workflow, realtime
Transport, video/audio content and template matching based monitoring
All from packet loss through SCTE, subtitles andfreeze to lip sync and bit rate
Source recording for error events, triggered by any of the event detection rules
PCR timing, Packet Loss, Packet IAT, Missing ABR files, ABR delivery times
Reporting / Logging all SCTE events, Invalid Triggers, Missed triggers, Expired windows
(Audio + Video Essence) Freeze, Black, Loudness Subtitles presence & validity
(Received vs. Expected) Correct resolution, bit rate, pgm ID, correlation
Click to learn more about TAG's visualization on the Multiviewer page
ST-2110 ……………………………….. 2110-10/20/21/30/31/40
ST-2022-6 ……………………………………………….…… SDI over IP
ST-2022-7….. Redundancy for Uncompressed & MPEG-TS
MPEG-2 Video …………………………………….… up to MP@5.1
H.264 Video ……………………………………………. up to Hi@4.1
HEVC Video ……………………………………………. up to MP@5.1
JPEG2000 TR-01……………………………………. up to 200mbps
Color Space ……………. YUV420, YUV422, YUV422-10bit
Graphics elements ………….… JPEG or Video file placement
Multicast & Unicast.….………………….…….….… TS over UDP
TS over RTP, TS over HRTP
HLS/MPEG-DASH/MSS/CMAF.……….…….……. OTT formats
RTMP …………………………………………………. PUSH & PULL
SMPTE-2022-6/7…………………………………… RTP over UDP
ST-2110 ………………………………………………. RTP over UDP
Zixi ……………..…..…………client mode at the Input & Output
TS sync loss
Sync byte error
PAT error
Continuity count error
PMT error
PID error
Transport error
CRC error
PCR repetition error
PCR discontinuity
PCR accuracy error
PTS error
CAT error
NIT actual/other error
SDT actual/other error
EIT actual/other error
RST/TDT Error
TS PSI, TS DVB SI
Audio codec ……… MPEG2 / AAC / HE-AAC / A-52 / AES67
Audio channel mode ……………..……………. 1 / 1+1 / 2 / 5.1
Loudness monitoring… EBU-R-128/ITU-1770-3/ATSC A/85
Silence detection …. Mono, stereo, dual mono, surround
Clipping detection ………….…….. User adjustable threshold
Video codec … MPEG2 / H.264 / HEVC / UNCOMPRESSED
HDR …………………………………………………..…. HDR10, HLG,PQ
Video encoding …………………………………… Level and profile
Video resolution …..………… 480i, 576i, 1080i, 1080p, UHD
Video aspect ratio …….………………………….………. 4:3 / 16:9
Video frame rate …..…… 25 / 29.97 / 30 / 50 / 59.94 / 60
Video content ………….….. Black / Freeze / Black with logo
Video quality …………………………………… Blocking detection
Graphics elements ………….… JPEG or Video file placement
SCTE-35/104…………………….……………………… XML & Binary
Graphics elements ………….… JPEG or Video file placement
DVB & ID3 subtitles ….………………….….… Overlay display
CC errors ………………………………………………. Separate rules
Closed Caption ………….…………. CEA-708, CEA-608, OP-47
Multi language support ………….. Support for up to 8 PIDst
Scrambling verification
Crypto period measurement
ECM/EMM existence tests
ECM Private data change notification
DVB Simulcrypt AES-ECB descrambling
HLS AES descrambling
Multi language support ………….. Support for up to 8 PIDst
SNMP ….……………………………… Configurable SNMP TRAPS
SYS LOG ………………….… Configurable sys-log notifications
SMTP …………………………………..………….. Email notifications

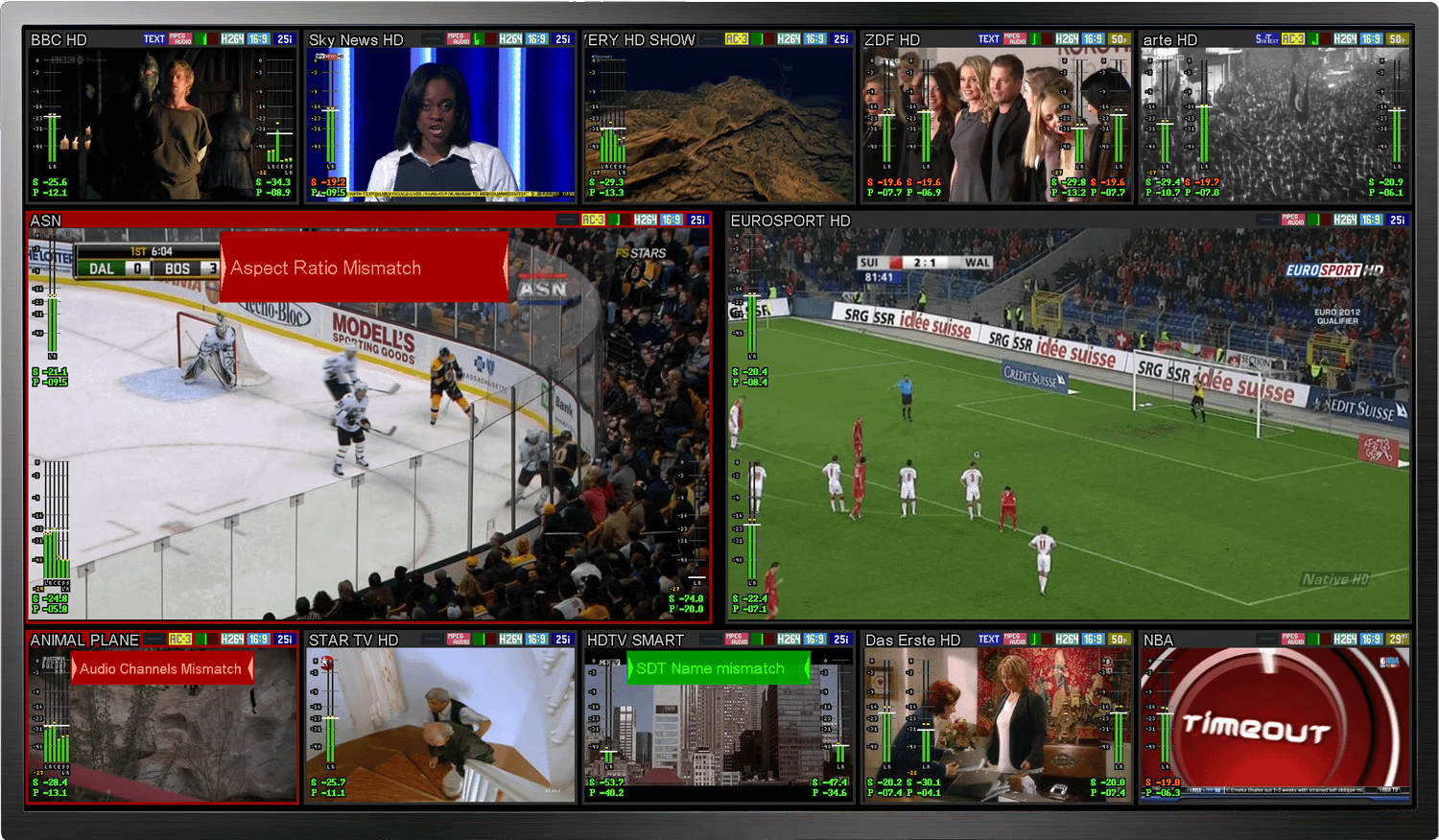

Overlay ………………… Overlay error display on the mosaic
Centralized Error Display …………..… Group error channels to a single display
Service structure tree-view (per PID)
Display of each PID’s bitrate
Display of service bitrate
Display of service properties
Graphical display of audio loudness and True-peak
One of the most popular questions we get. Of course, the answer will depend on your application. But good news- we have created a special tool to help you get an estimate. Check it out: http://systemconfigurator.tagvs.com/
Absolutely! Did you know all our existing clients tried the system before choosing TAG? (Okay, all but one). Apply for your free 90 day trial: https://www.tagvs.com/tag-trial/
Yes! The TAG platform can run on cloud instances. Learn more here: https://www.tagvs.com/tag-on-the-cloud/
We do!
The two main challenges of cloud live production implementations for work-from-home applications are getting the uncompressed sources to the cloud and delivering the Mosaic Output to the home.
The TAG platform JPEG-XS which can be used to deliver high-quality production content to the cloud where bandwidth limitations apply and can also provide the mosaic output as Zixi and/or HLS streams to be delivered to the home over the public Internet.
The TAG platform has an elaborated JSON API which can be used by custom user panels configured to control the system functionalities.
Input:
HEVC, MPEG-2, H.264, ZIXI, JPEG-2K, JPEG-XS, ST 2110 / -7, ST 2022-6 / -7, DASH, HLS, TS/UDP, TS/RTP, HLS, DASH, RTMP, UHD, HD, HDR, DOLBY-D, ATMOS, AAC, M2A, A52, AES67
Output:
ST 2110 / -7, ST 2022-6 / -7, H.264, ZIXI, SPTS, HLS, HD, UHD
Yes! The TAG open, flexible and rich APIs allow integrations with virtually any system
Absolutely- You can view all monitored streams in the same layout.
